XNX Honeywell Data Sheet


XNX Honeywell Data Sheet

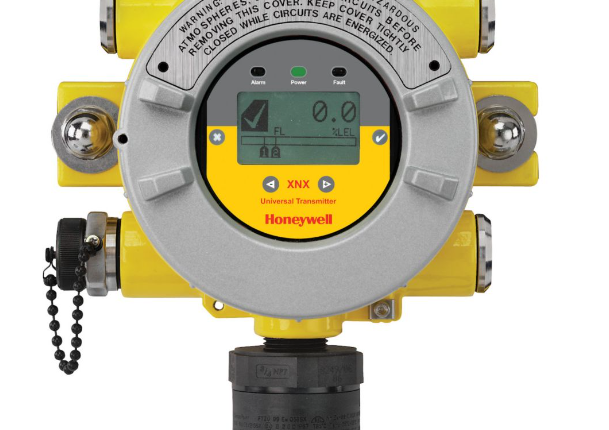

The XNX Honeywell Universal Transmitter is a high-spec universal transmitter designed to work with a wide range of Honeywell Analytics local and remote gas detectors. It detects both toxic and flammable gases and is suitable for hazardous Zone 1 and 2 areas in North America.

XNX satisfies Class 1/Class 2 intrinsically safe, explosion-proof requirements

XNX Honeywell’s XNX transmitter satisfies Class 1/Class2 intrinsic safety, explosion-proof requirements, making it a smart choice for hazardous environments. Designed to meet the highest standards of safety and reliability, it comes with a marine-grade coating and stainless steel or aluminium enclosure. It also features five threaded ports with either metric or NPT threads, offering ultimate installation flexibility. In addition, the XNX transmitter is equipped with a 4-button user interface and a DOT matrix display.

The XNX Universal Transmitter supports a wide range of gas detection technologies, including infrared, catalytic and electrochemical sensors. Its flexibility enables it to integrate with safety equipment using a digital bus system. In addition, it supports up to three relays and is compatible with HART handheld devices.

Easy-to-use, low-maintenance universal platform

Honeywell has created a new, flexible framework for field instrumentation services that improves connectivity and reduces operational costs. These services offer actionable insights that optimize operations and help mitigate obsolescence risks. The Honeywell Configurator, for example, is an app-based handheld that connects to Honeywell transmitters and can download configurations quickly. It can also be used to troubleshoot problems in the field. These tools are available for all types of aircraft and are affordable enough for any size fleet.

Honeywell’s XNX platform supports a broad range of sensors and provides modular choice for inputs and outputs. This saves customers time and money in maintenance and installation. It supports electrochemical, infrared, and catalytic Bead gas monitors, and it uses standard 4-20 mA wiring. It is also compatible with up to three relays.

HART EDDL communication

EDDL is a standard for describing a device and the process it uses. It is similar to XML or an HTML web page, but unlike these formats, there is no need for a developer to know how to write a program to use it. EDDL is standardized in IEC 61804-3 and IEC 61804-4, and contains profiles for different fieldbuses.

Honeywell has developed the XNX Universal Transmitter with HART EDDL to support the broadest range of gas sensors on a single platform. With modular inputs and outputs, it enables flexible integration and is compatible with various gas monitoring controllers and industry-standard PLCs. This transmitter also includes HART EDDL software, which can give the user an at-a-glance indication of the gas detector’s health.

Honeywell’s HART EDDL communication software enables real-time advanced diagnostics and management from the PLC. The software is compatible with Foundation Fieldbus and Modbus. It can also interface with XNX, X-Series, and a wide variety of other industrial communication protocols.

HART EDDL and the Fieldbus Foundation have a long history of cooperation and standardization. These organizations have developed the Electronic Device Description Language (EDDL) and Field Device Integration specification. The merger between the two organizations provides a unique opportunity for harmonization and increased value of both technologies.
